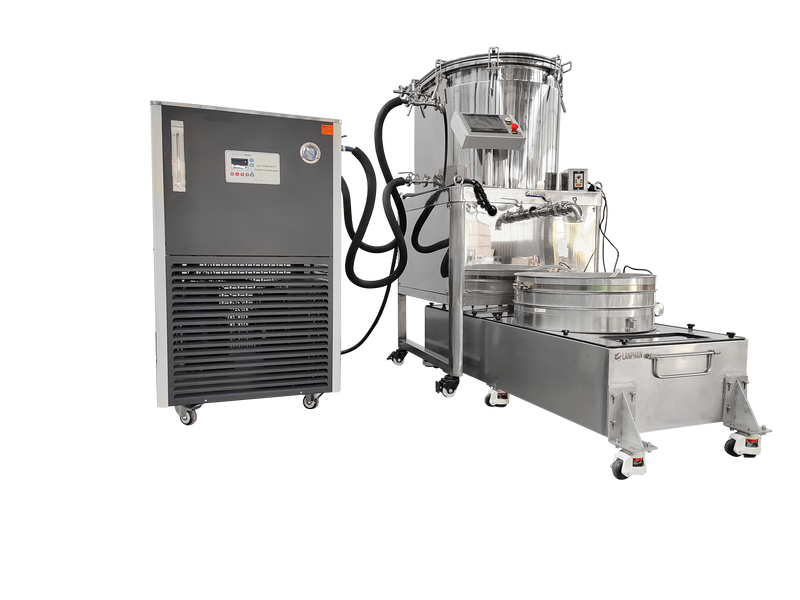

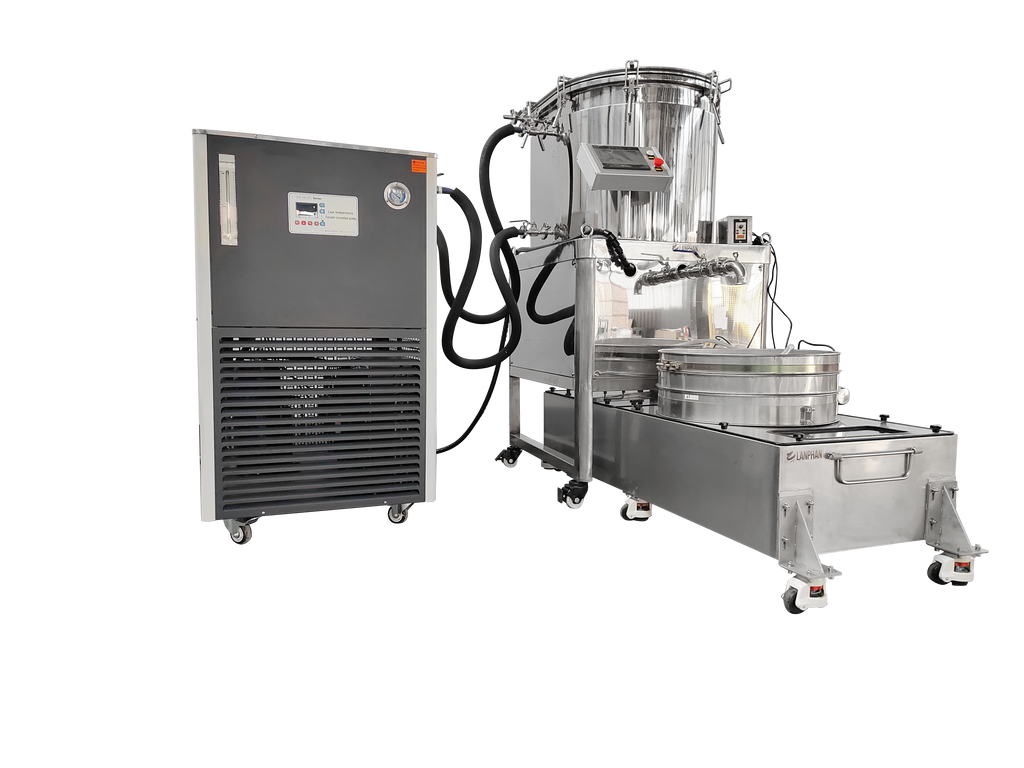

Commercial Bubble Hash Washing Machine


Size: 190L
Price:
Sale priceR 730,000.00

Shipping calculated at checkout

 Description

The commercial washer system is capable of producing solventless bubble hash from fresh frozen material or dried tricome rich botanical biomass.



Available in 190 and 280 litre capacity the washer can process 15-23kg fresh frozen biomass per cycle.



Using only ice cold water (non solvent based) and vortex agitation the washer separates botanical materials from tricomes in the solution. The separator in turn fractures the tricomes and dewaters the product which can then be placed in a freezer drier to be used as starter material for various end user products.



190L Washing Machine

• Volume: 190L

• Voltage: 220V

• Total power: 1.1KW

• Jacket volume: 30L

• Cooling area: 0.9 m2

• Material: sanitary stainless steel

• Jacketed, viewing window and moving wheels

• Agitation Range from 200-800 RPM

• Set RPM speed, Total run time and Run time in each direction on the touchscreen PLC controller



The vessel allows for the connection of

1) Chiller to allow for little to no ice usage

2) The 320L recirculating collect & filter Tank (autosieve)



280L Washing Machine

• Volume: 280L

• Voltage: 220V

• Total power: 1.1KW

• Jacket volume: 47L

• Cooling area: 1.35 m2

• Material: sanitary stainless steel

• Jacketed, viewing window and moving wheels

• Agitation Range from 200-800 RPM

• Set RPM speed, Total run time and Run time in each direction on the touchscreen PLC controller



The vessel allows for the connection of

1) Chiller to allow for little to no ice usage

2) The 320L recirculating collect & filter Tank (autosieve)



Chiller

• To keep the water cold about 1-3C

• Circulation power: 280W

• Circulation pump flow: 35L

• Temp. display mode: LCD

• Voltage: 220V

• Safeguard: Delay, leakage, overcurrent, overheat protection



Vibrating Separator & Tank

• Capacity: 320L

• Material: SS304

• Vibration Motor Power: 50W

• Recirculating pump power: 370W

• Voltage: 220V

• Support liquid recirculating from tank to the trichome separator

• It sits underneath the washer and the drain can connect to a pump to move the drained/filtered water back into the main vessel for recycled usage, or to a sink, floor drain, etc for drainage/waste water.



System includes:

1) SS Sieve Screen

2) Recirculation pump

3) Controller & Water gun

4) Vibrating Motor

5) Storage Tank

6) All necessary components/hardware for Nest compatibility
