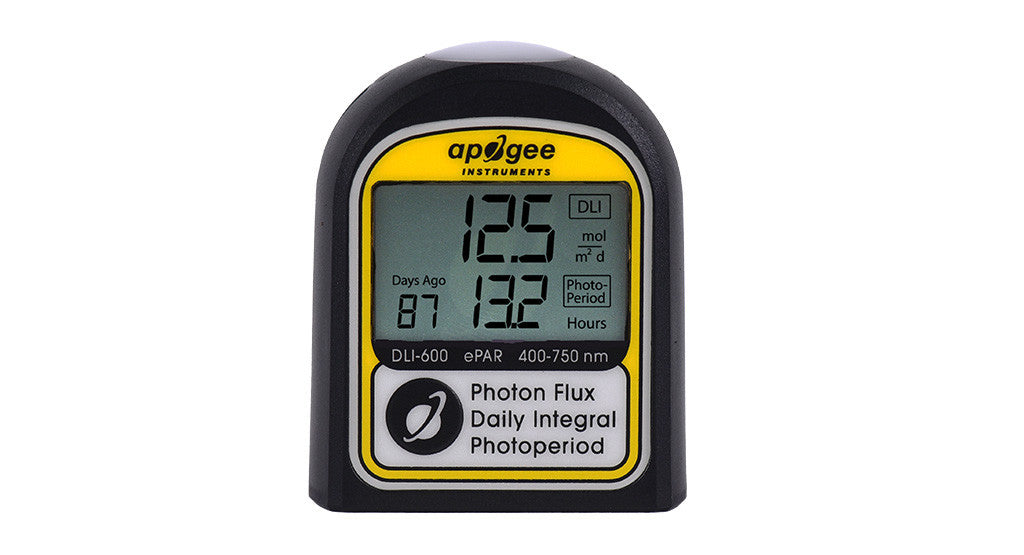

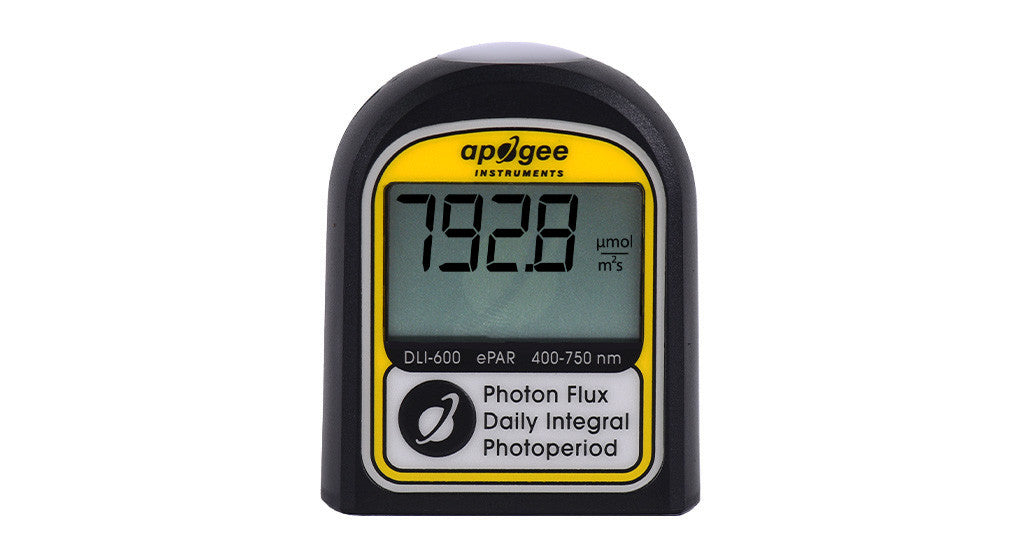

DLI-600 ePAR Meter

The Apogee Instruments’ DLI-600 is a user-friendly device for spot checking photosynthetically active radiation (PAR) beyond the traditional 400–700 nm range. It measures the 400-750 nm ePAR radiation range, calculates daily light integral (DLI), and photoperiod, aiding in light management and decision-making for plant growth.

Key Features:

• Extended Range: Measures 400-750 nm ePAR radiation.
• Accurate Measurement: The DLI-600 accurately quantifies the total amount of ePAR incident on a plane within a 24-hour period (expressed in moles per square meter per day, mol m⁻² d⁻¹).
• Measurement Modes: Single or continuous measurements of ePPFD, DLI, and photoperiod.
• Influence on Plant Growth: PAR, DLI, and photoperiod significantly impact plant growth and development.
• Suitable for Greenhouses and Growth Chambers: Professionals use the DLI-600 to manage light and make informed decisions.

Why Choose the DLI-600?

• Apogee Quality: Developed under the direction of Dr. Bruce Bugbee, considered the gold-standard by agricultural professionals.
• Stability: Apogee’s research-grade sensors maintain accuracy over time (less than 2% drift per year).
• User-Friendly: Easy to use with live view and stored data screen modes.
• Rugged Design: IP65 rated, waterproof, and compact with a standard ¼-20 threaded port for mounting.

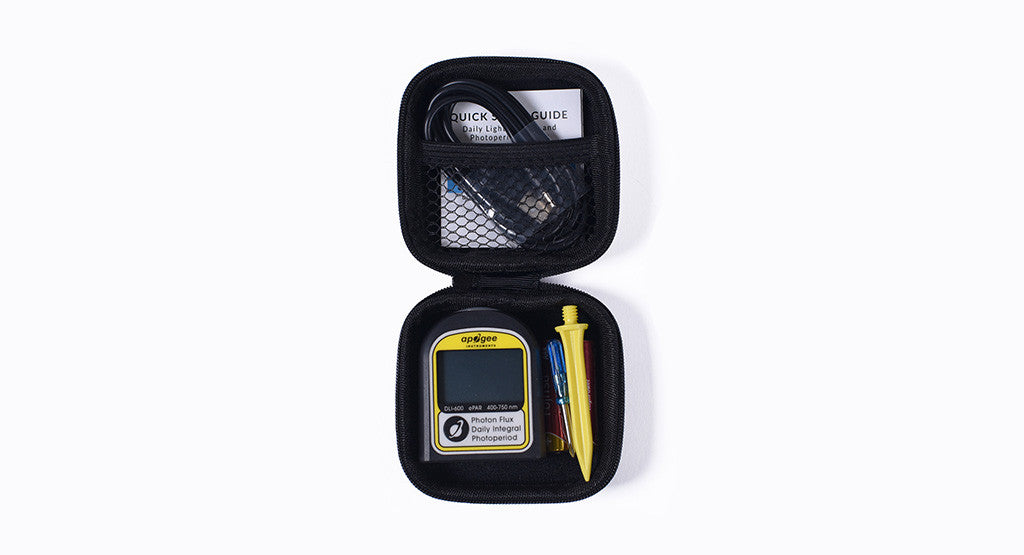

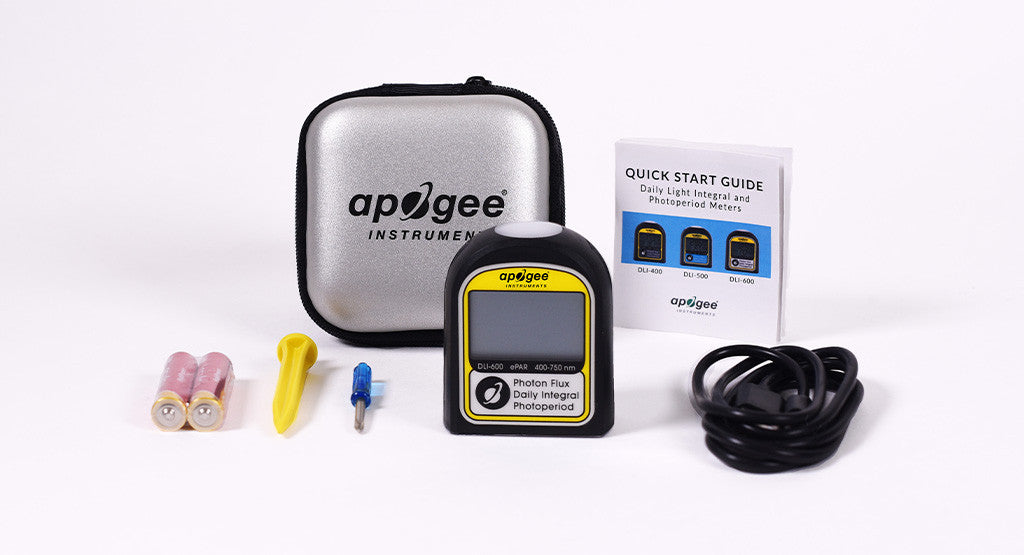

• Complete Package: Includes meter, carrying case, batteries, quickstart guide, screwdriver, soil spike, and USB-C cable.

Specifications:

• Calibration Uncertainty: ± 5 %
• Measurement Repeatability: Less than 0.5 %
• Measurement Range: 0 to 4000 µmol mˉ² sˉ¹
• Long-term Drift: Less than 2 % per year
• Field of View: 180˚

• Spectral Measurement Range (± 5 nm): 383 to 757 nm

• Directional (Cosine) Response: ± 5 % at 75˚ zenith angle
• Temperature Response: -0.11 ± 0.04 % per C
• Response Time: 2.5 seconds
• Measurement Frequency: 3 minutes
• Data Log Capacity: 99 days (DLI & Photoperiod), 10 days (30 min PPFD/ePPFD averages)
• Non-linearity: Less than 1 % (up to 4000 µmol mˉ² sˉ¹)
• Stored Data Resolution (PPFD): 0.1 µmol mˉ² sˉ¹ (when ≥ 1000, the screen will not display the decimal)
• Stored Data Resolution (DLI): 0.1 mol mˉ² dayˉ¹
• Stored Data Resolution (Photoperiod): 0.1 hours
• Connectivity: CSV file via USB-C data transfer
• ADC Resolution: 24 bits
• Operating Environment: -40 to 70 C; 0 to 100 % relative humidity
• Ingress Protection: IP65
• Mounting Compatibility: Brass 1/4-20 threaded mount
• Battery Life: Approximately 6 months
• Dimensions: 1.91 W x 2.31 H x 0.93 D (inches)
• Mass: 67 g
• Warranty: 4 years against defects in materials and workmanship
• Manufactured: Assembled in the USA
