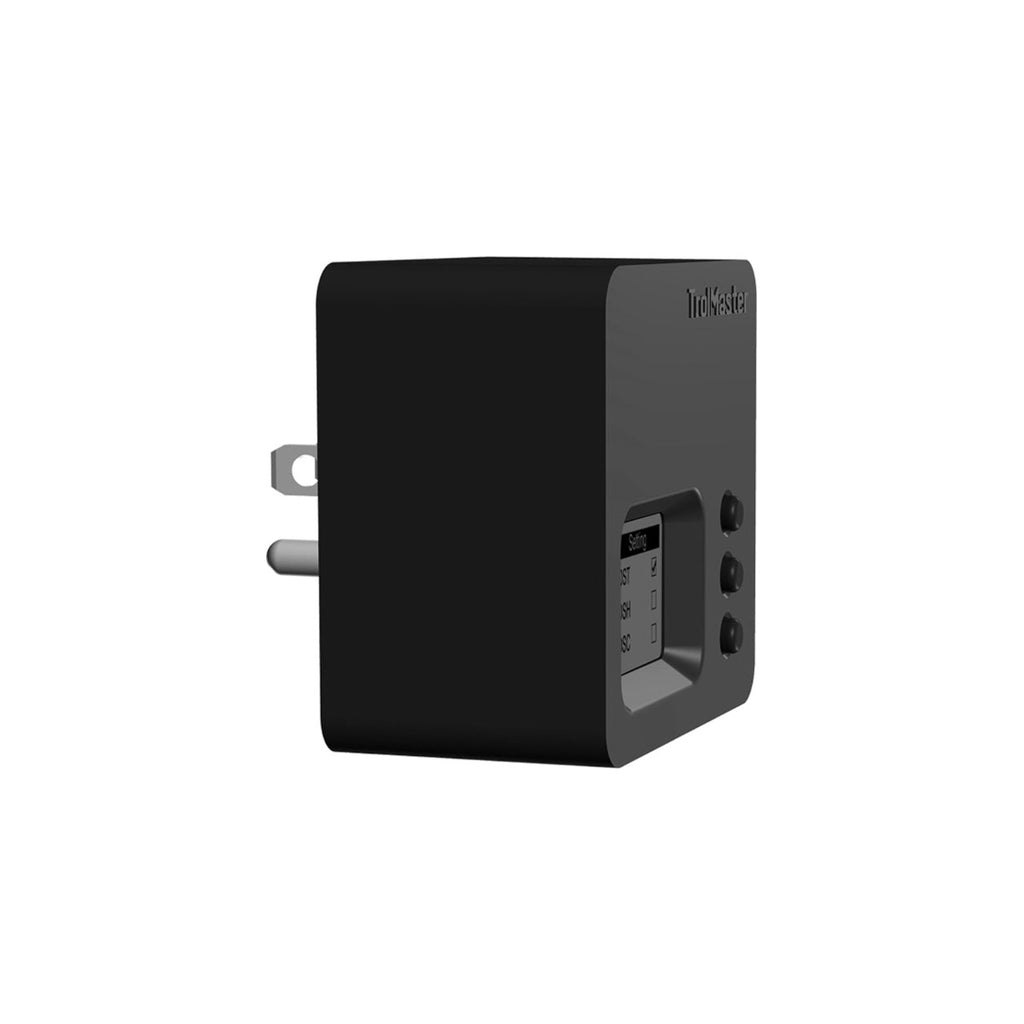

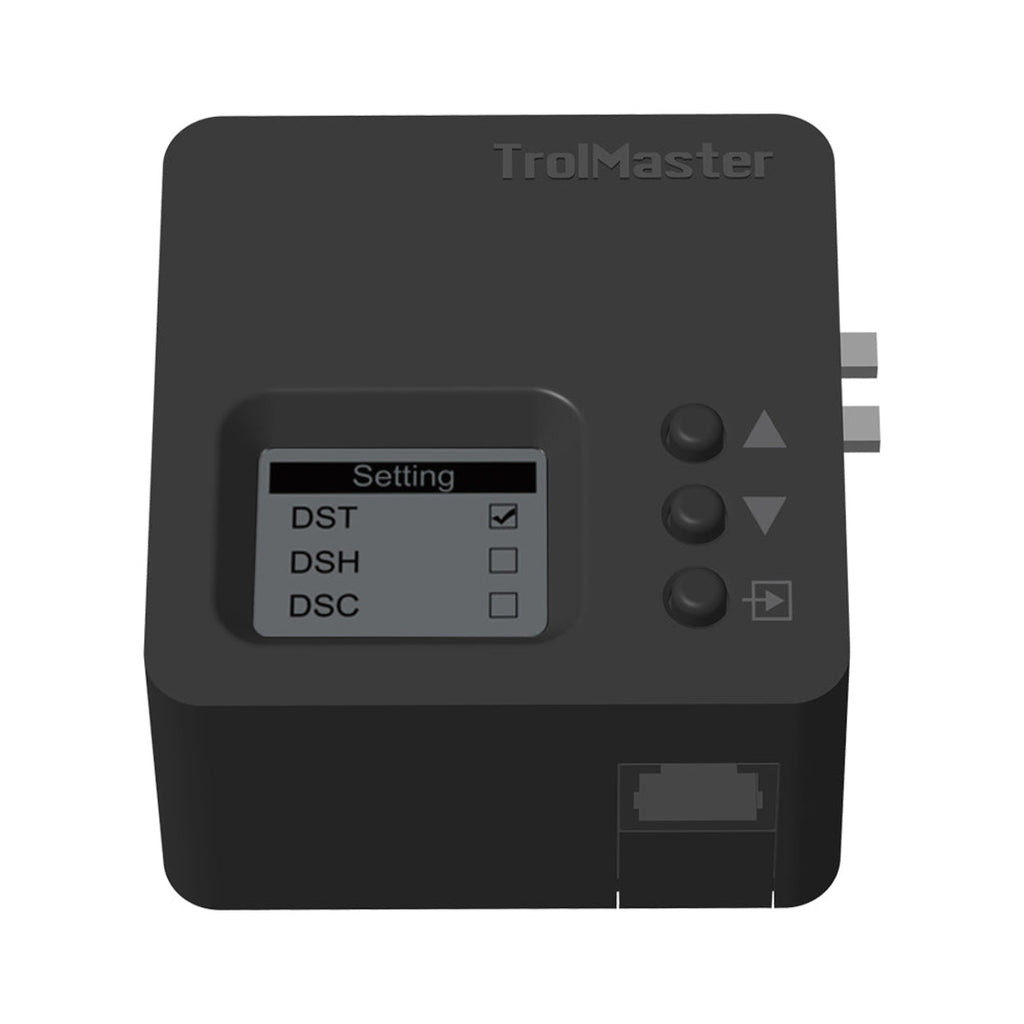

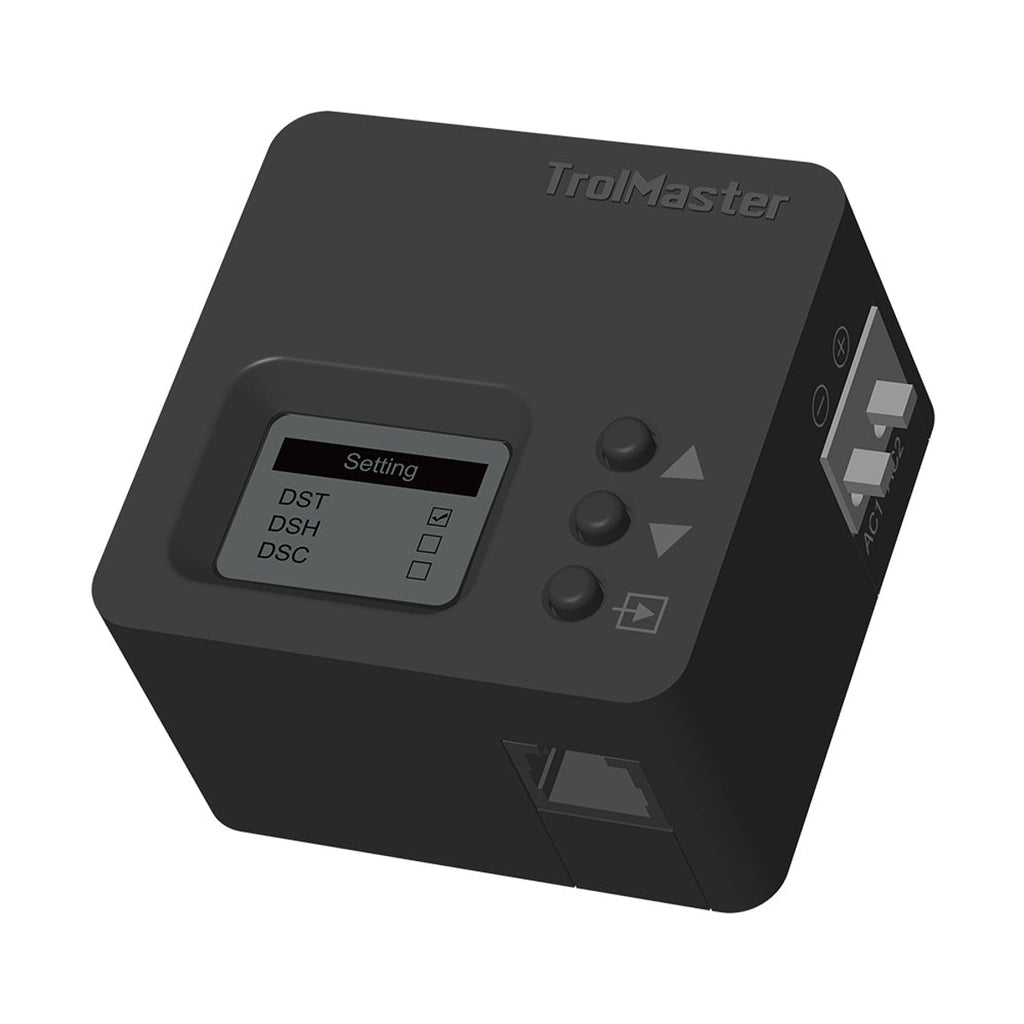

The Trolmaster DSV-1 is a low-voltage output module that can be used on the Hydro-X and Aqua-X controllers. The DSV-1 can be addressed to be used as a temperature, humidity, CO2, or timer device module. Multiple voltage outputs are selectable by the user. The DSV-1 can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-1. This allows the user to directly connect low-voltage devices such as solenoids, valves, audio visual alarms or any other device that requires 12 to 24-volt AC or DC power to operate.

• 1x Low-Volt Station DSV-1

• 1x 16ft RJ12 Cable

• 1x 4ft RJ12 Cable

• 1x RJ12 T-Splitter

• LCD Display, Easy Operation

• Seamless Connection with Hydro-X and Hydro-X Pro

• Multiple purposes assignment

• Plug & Play

• Input Voltage: 100~240VAC, 50/60Hz

• Output Voltage: DC24/ AC24 0.25A or DC12/ AC12 0.5A

• Working Environment: Temperature 32-122°F, Humidity=90%

• Packaging Dimensions: 85mm x 80mm x 90mm
