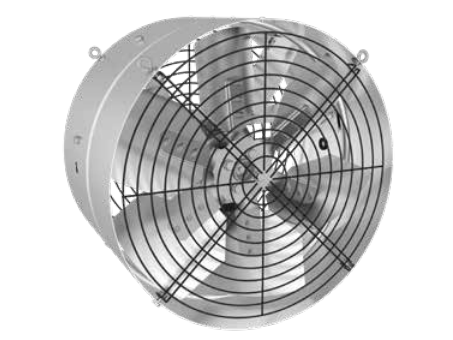

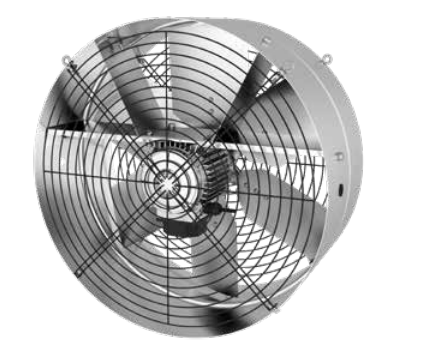

The Munters Euroemme EDC18 GHp is an air circulation fan designed to improve air quality and climate conditions in greenhouse and agricultural environments. It is developed to break up stratified heat, humidity and stagnant air, helping maintain a more stable and uniform indoor climate.

By improving the distribution of temperature and humidity, the EDC18 GHp helps reduce the risk of condensation while promoting more consistent environmental conditions throughout the growing area. Its compact design also helps minimise shading in greenhouse applications, supporting light exposure and plant transpiration.

The EDC18 GHp combines high airflow with low energy consumption to provide an energy-efficient circulation solution that can contribute to reduced heating, cooling and ventilation costs.

• Optimised Climate Distribution: Designed to improve the distribution of temperature and humidity throughout greenhouse and controlled-environment applications.

• Reduces Air Stratification: Helps break up stratified heat, humidity and stagnant air to promote a more stable indoor climate.

• Reduced Condensation Risk: Improved air circulation and humidity distribution can help diminish the risk of condensation.

• Long Airthrow: Provides an airthrow of up to 25 m for applications with a gable height greater than 2.5 m, based on a residual air speed of 0.8 m/s.

• Energy Efficient: Designed to provide high airflow with low energy consumption, helping reduce heating, cooling and ventilation costs.

• Compact Design: Compact construction helps reduce the negative effects of shading on plant growth while maximising light exposure and transpiration in greenhouse applications.

• M-Protect Coating: Features M-Protect for enhanced durability in demanding agricultural environments.

• Self-Cleaning Propeller: The unique propeller design is self-cleaning, helping maintain operating efficiency while reducing cleaning and maintenance requirements.

• Fast & Easy Installation: Designed for straightforward installation in greenhouse and agricultural air-circulation applications.

• Manufacturer: Munters Euroemme

• Model: EDC18 GHp

• Nominal Power: 0.5 hp

• Electrical Specification: 400 V, 50 Hz

• 60 Hz Version: Available upon request

• Propeller Diameter: 450 mm (18")

• Number of Blades: 6

• Blade Material / Protection: M-Protect

• Nominal Propeller Speed: 1,400 RPM

• Maximum Power Consumption: 620 W

• Maximum Current: 1.2 A

• Motor Insulation Grade: Class F

• Protection Class: IP55

• Noise Level: 69.2 dB(A)

• Weight: 14 kg

• Airthrow: 25 m at a residual air speed of 0.8 m/s

• Recommended Gable Height: Greater than 2.5 m

• Dimension A: 472 mm

• Dimension B: 305 mm

• Dimension C: 355 mm

• Dimension D: 275 mm

• Application: Designed for air circulation in greenhouse and agricultural environments where improved temperature, humidity and air distribution are required.

• Positioning: For the stated 25 m airthrow specification, the manufacturer specifies a gable height greater than 2.5 m and a residual air speed of 0.8 m/s.

• Electrical Supply: The supplied technical specification is based on a 400 V, 50 Hz configuration. A 60 Hz version is available upon request.

• Installation: Install and connect the EDC18 GHp in accordance with the manufacturer's technical documentation and applicable electrical and installation requirements. Electrical installation should be carried out by a suitably qualified person.

Download Munters Euroemme EDC18 GHp Technical Specification Sheet
