OM-8 Dry Contact Board For Hydro-X Pro And Aqua-X Pro

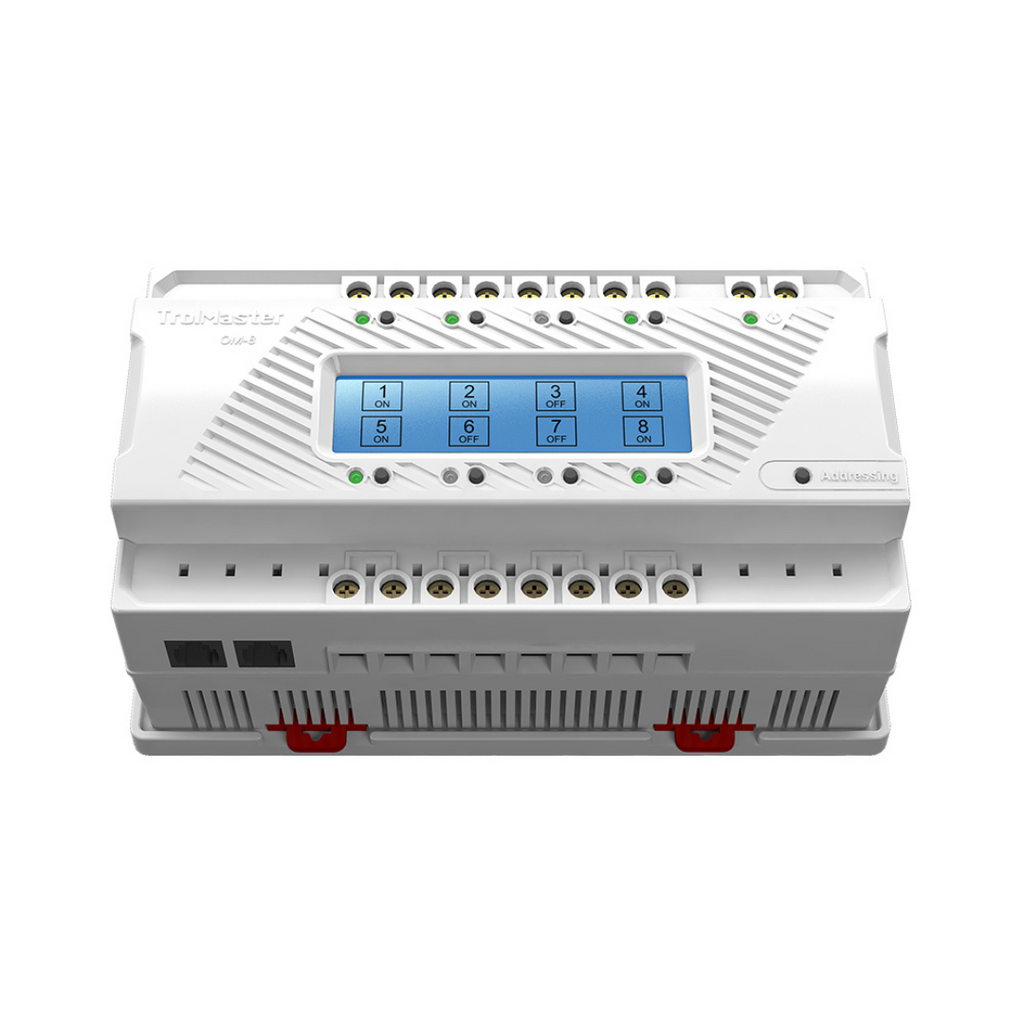

The OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts, and allows up to 12 Amp current through each contact.

• LCD Display, easy to set up and use

• Easy installation

• Overload protection on each of the 8 outputs maximum of 12 amps

• Each contact can be forced open or closed for a duration of 30 minutes

• The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC

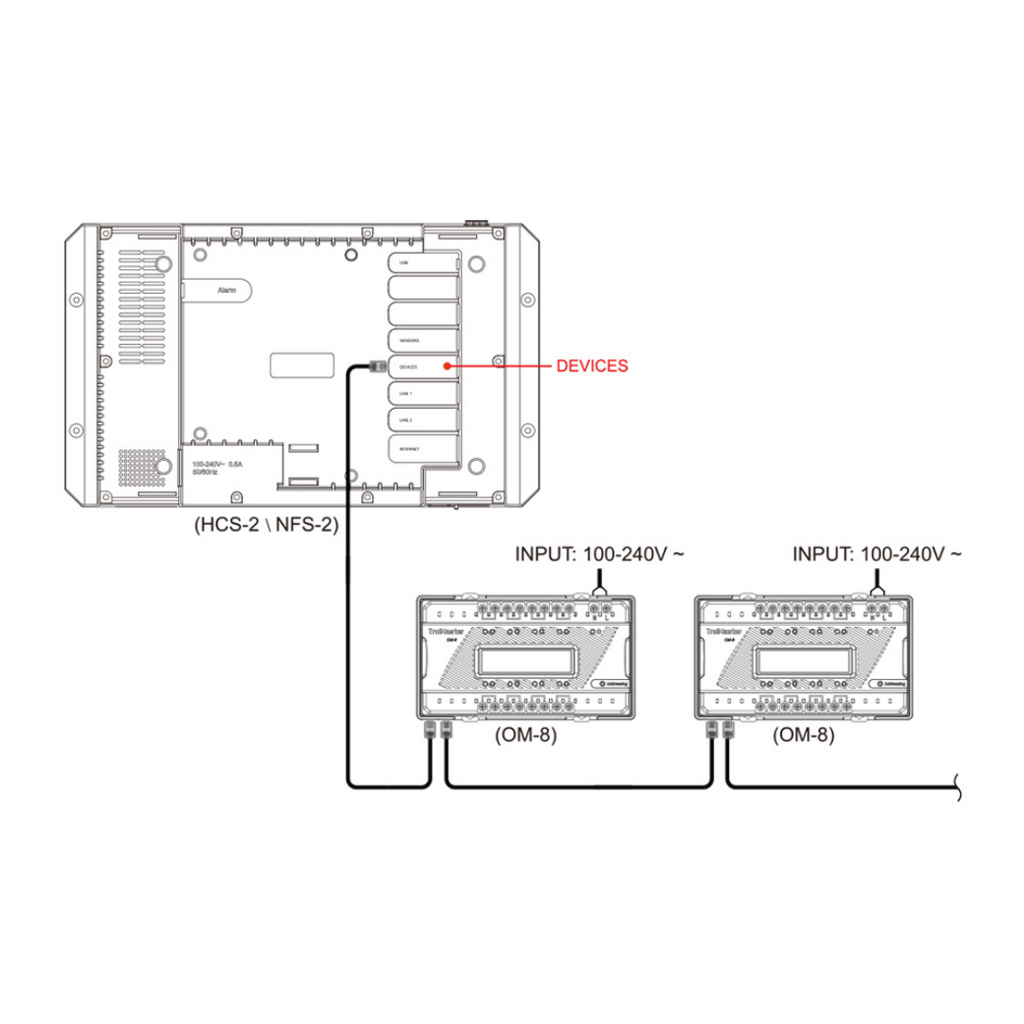

• Connect it to the device port on the main controller using an RJ12 cable.

• After the module is addressed and added to your main controller, the main controller will send signals to control the 8 individual outputs.

• 1x OM-8 dry contact board

• 1x 5m RJ12 Cable
