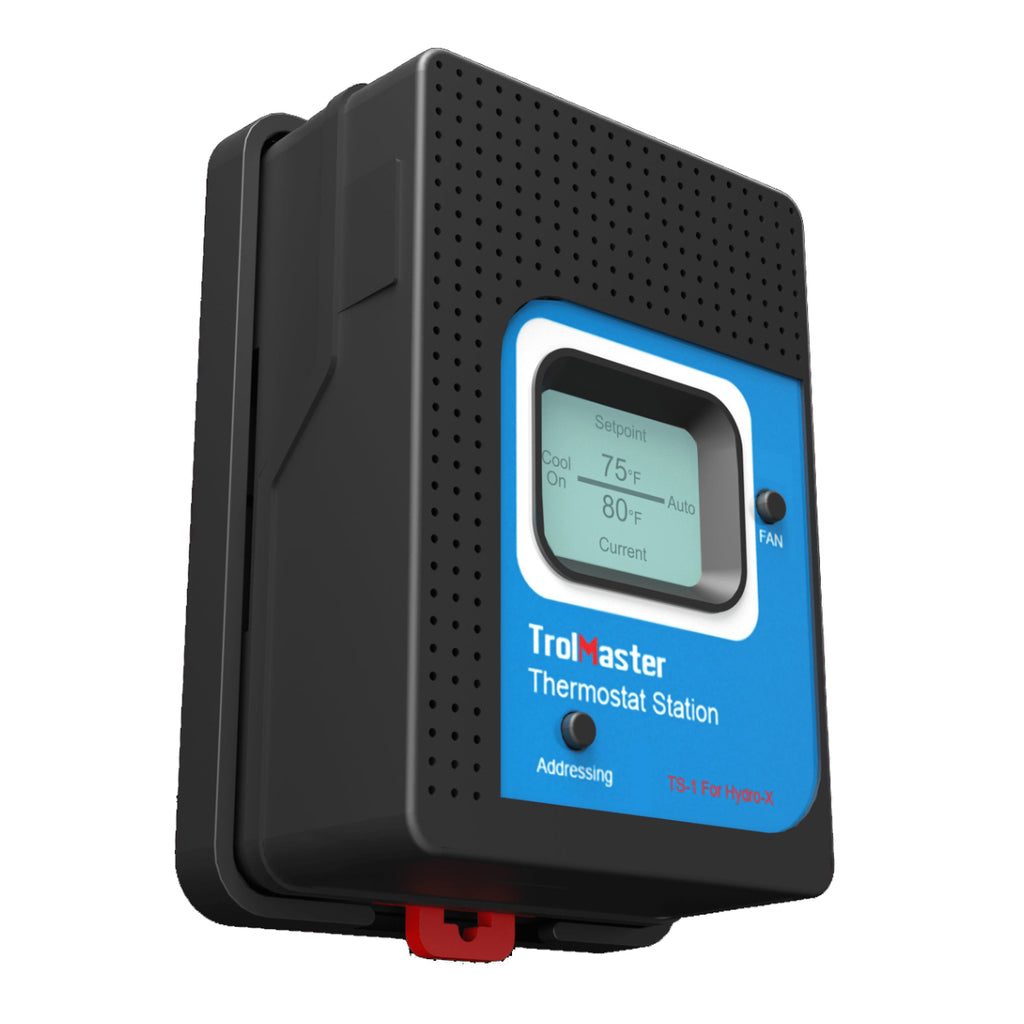

TS-1 Thermostat Station

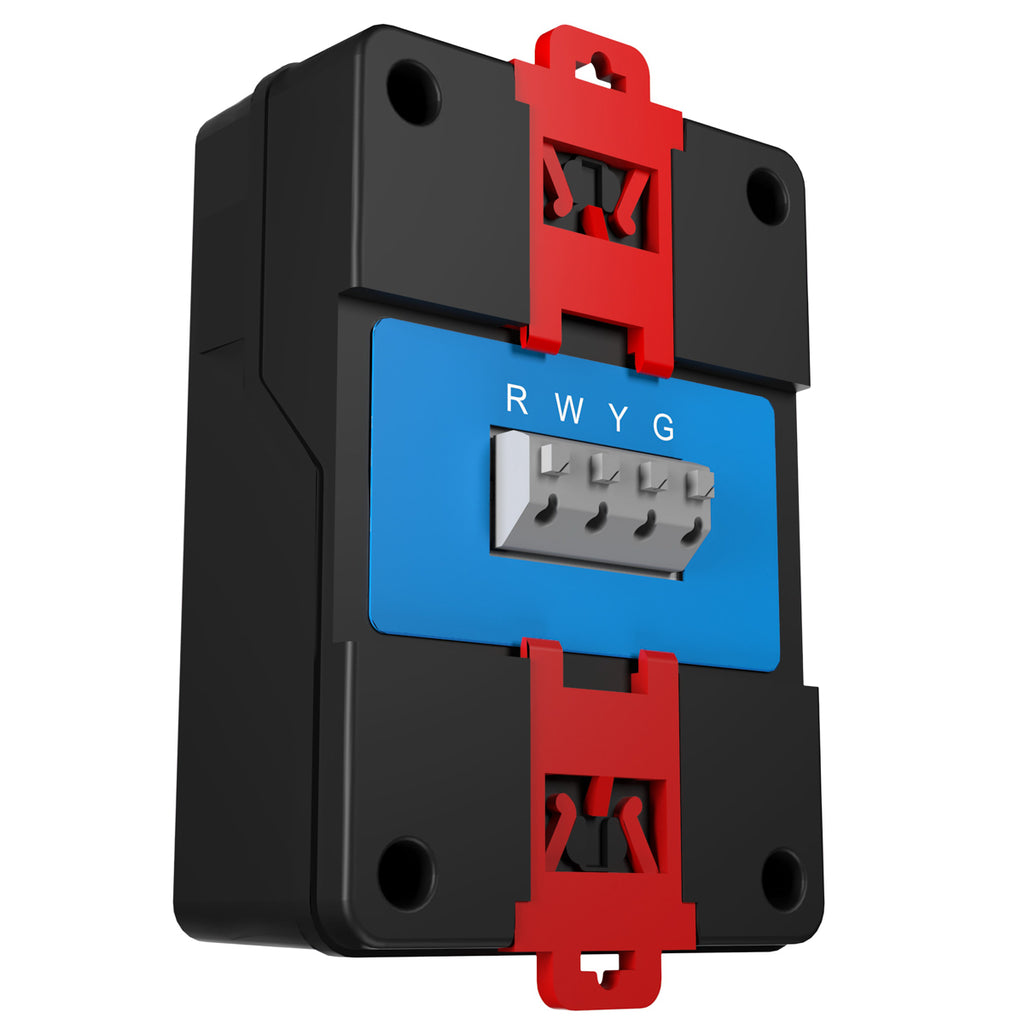

The TS-1 thermostat station is designed to replace a thermostat connected to a conventional cool only HVAC unit. The TS-1 is wired to the HVAC system using the same low-voltage thermostat cable and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS-modules so multiple HVAC systems can be controlled by a single Hydro-X system.

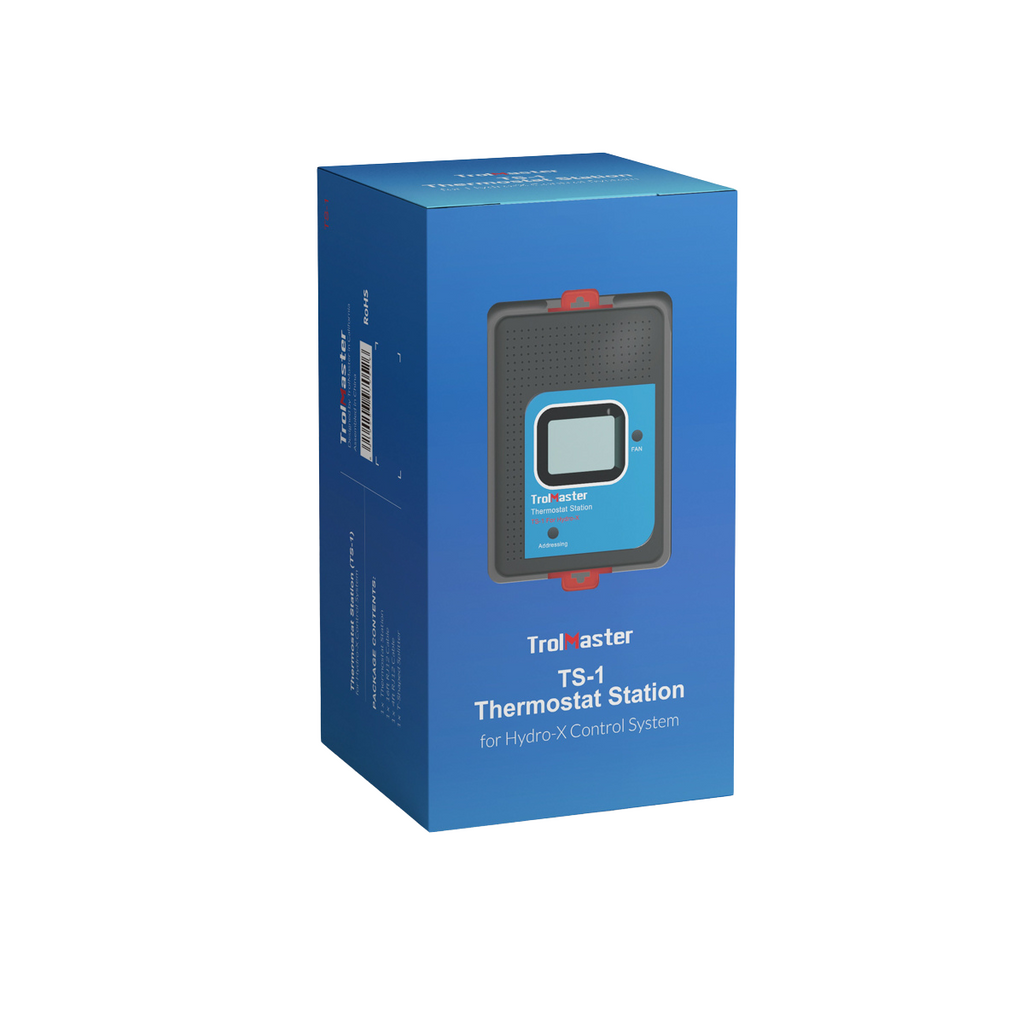

• 1x Thermostat Station (TS-1)

• 1x 5m RJ12 Cable

• 1x 1.2m RJ12 Cable

• 1x RJ12 T-Splitter

All other Device Stations, Sensors and Controllers need to be purchased separately.

• LCD Display, Easy Operation

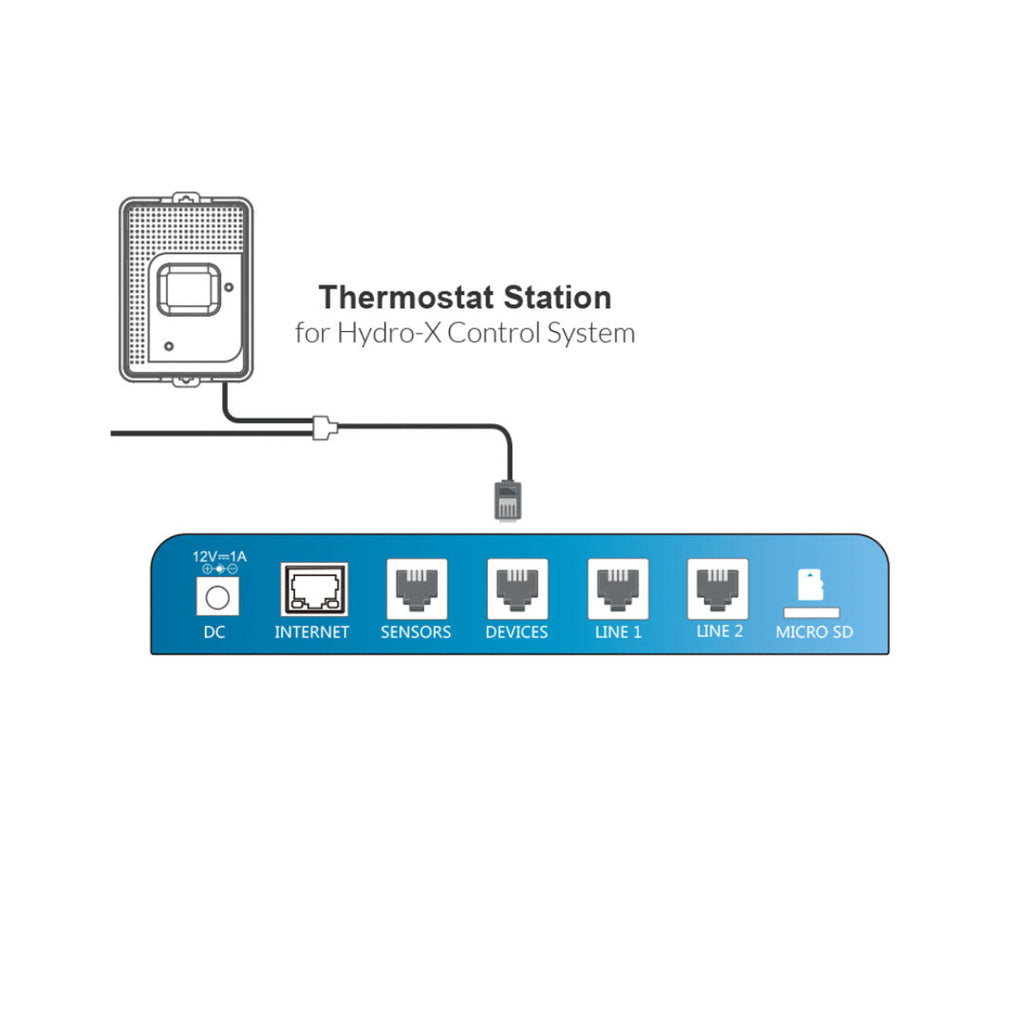

• Seamless Connection with Hydro-X

• Micro-SD for Firmware Upgrade

• Address Assignment

• Plug & Play

• Output Voltage: 24V

• Maximum Current: 1A

• Working Environment: Temperature 32-122°F, Humidity=90%

• Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)

• G.W. per pack: 0.40kgs
